Bradley S19224FW Halo Eye Face Wash Station with Plastic Bowl - Wall Mounted Safety Eyewash for Laboratories, Construction Sites & Industrial Use

✅ Halo™ Delivers the Most Effective Eye/Face Washdown Coverage and Spray Pattern

✅ Exceeds ANSI/ISEA Z358.1 Specifications

✅ Industry's Only Self-Draining Design – The Aquaduct™

✅ Separate Supply and Waste Pipes – Meets CEN and Plumbing Requirements

✅ Ergonomic Hand Activation Eyewash Paddle – Easy to Reach from Any Direction

✅ Barrier Free

✅ Fully-Assembled and Factory-Tested Eyewash or Eye/Face Wash with Hinged Dust Covers

✅ Yellow Transparent Plastic and Stainless Steel Bowl Covers Available

The Bradley S19224FW Wall Mount Emergency Eyewash-Facewash is a durable wall-mounted eyewash unit that complies with American National Standard Z358.1-2014 performance requirements. The wall-mounted style is perfect for use in settings where tight conditions prevent the use of a freestanding eyewash model. The unit features a 10-inch bowl made of yellow impact-resistant plastic and galvanized steel pipes covered with Bradtect yellow safety coating to make them highly visible.

Guaranteed with a one-year warranty from the manufacturer, the emergency eyewash features the Halo eyewash-facewash system, which is designed to completely flush the face and eyes with 4.3GPM of water at an optimal safe velocity. An antimicrobial agent is included in the unit to preserve the sanitary conditions of your facilities. To ensure that the water flows amply, but at a safe rate in the event of an emergency, the eyewash features integral flow control. The unit switches on easily with a stainless steel handle, which operates the chrome-plated brass 1/2-inch Ips stay-open ball valve. A safety sign and inspection tag are included with the Bradley S19224FW Eyewash unit. This model is also known as the S192240A1BAAA00 and replaces the Classic series model S19-220FW.

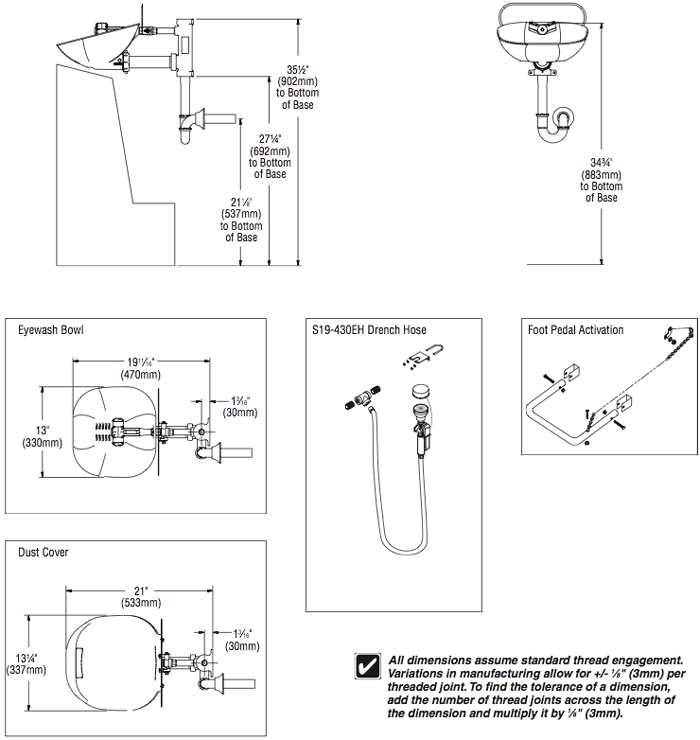

Specifications
Standard Eyewash or Eye/Face Wash Units save space and fit easily into any work environment. Halo eyewash or eye/face wash, operated by an ergonomic, highly visible push handle, provides effective wash down coverage and spray pattern. Integral strainer reduces debris in the water and also prevents clogging.

Pipe and Fittings
Piping to ½" NPT (BSPP) water supply inlet on unit. Piping to 1¼" NPT (BSPP) drain outlet for eyewash.

1¼" piping assembly manufactured of one of the following materials:
• Galvanized steel with BradTect® safety yellow coating
• Type 304 corrosion resistant stainless steel
• Type 316 corrosion-resistant stainless steel

Ball Valve
½" stay-open eye and eye/face wash valve manufactured of the following materials and supplied with either type 304 or 316 stainless steel pull rod and handle:
• Chrome-plated brass
• Type 316 stainless steel
• Self-closing chrome-plated brass (self closing eyewash valve may not meet local requirements for eyewash activation).

Eyewash
The Halo eyewash system offers a high performance rinsing platform that provides rapid relief to an individual’s eyes that have been injured by chemicals or particulate. The eyewash includes an integral 5.1 GPM (19.2 L) flow control, providing water at a safe velocity while maintaining its effectiveness (exceeds minimum water flow of 0.4 GPM (1.5 L) at 30 PSI (2.0 bar)). Eyewash is protected by flip open dust covers that open when product is activated or by a full bowl dust cover that activates the unit when it is opened. Safe, steady water flow under varying water supply conditions from 30–90 PSI (2.0-6.1 bar) is assured by integral flow control in the sprayhead assembly.

Eye/Face Wash
The Halo eye/face wash system offers a high performance rinsing platform that provides rapid relief to an individual’s eyes and face that have been injured by chemicals or particulate. This system provides the most complete face wash available in the market. The eye/face wash includes an integral 5.1 GPM (19.2 L) flow control, providing water at a safe velocity while maintaining its effectiveness (exceeds minimum water flow of 3.0 GPM (11.4 L) at 30 PSI (2.0 bar)). Eye/face wash is protected by flip open dust covers that open when product is activated or by a full bowl dust cover that activates the unit when it is opened. Safe, steady water flow under varying water supply conditions from 30–90 PSI (2.0-6.1 bar) is assured by integral flow control in the sprayhead assembly.

Eye/Face Wash
The Halo eye/face wash system offers a high performance rinsing platform that provides rapid relief to an individual’s eyes and face that have been injured by chemicals or particulate. This system provides the most complete face wash available in the market. The eye/face wash includes an integral 5.1 GPM (19.2 L) flow control, providing water at a safe velocity while maintaining its effectiveness (exceeds minimum water flow of 3.0 GPM (11.4 L) at 30 PSI (2.0 bar)). Eye/face wash is protected by flip open dust covers that open when product is activated or by a full bowl dust cover that activates the unit when it is opened. Safe, steady water flow under varying water supply conditions from 30–90 PSI (2.0-6.1 bar) is assured by integral flow control in the sprayhead assembly. Sprayheads are made from an impact resistant ABS plastic or from durable 316 stainless steel with electro-polished finish.Bowl and Dust Cover Bowl is constructed of yellow impact-resistant plastic, Type 304 corrosion-resistant stainless steel or Type 316 corrosion-resistant stainless steel. Optional dust cover is constructed of transparent yellow impact-resistant plastic, Type 304 corrosion-resistant stainless steel or Type 316 corrosion-resistant stainless steel.

Activation
Type 304 stainless steel push handle with optional aluminum or type 304 stainless steel foot pedal. Type 316 stainless steel push handle with optional Type 316 stainless steel foot pedal.

Drench Hose
Perforated sprayhead with protective sprayhead cover is ABS plastic and provides soft spray for cleansing eyes and face. Chrome-plated brass valve with extended handle stays open once handle is squeezed. 8' (2438mm) yellow reinforced thermoplastic hose has 3 ⁄8" NPT male thread. Burst strength is 450 PSI (31 bar). Attachment Kit includes ½" NPT supply, fittings and hanger for attaching hose to eyewashes. The sprayhead contains an antimicrobial agent to protect the sprayhead.

Backflow Prevention
Series N9 dual-check backflow preventer has a chrome-nickel plated brass body and includes atmospheric vent for continuous pressure applications. The check valve comes with 3 ⁄8" female dual NPT female inlet and outlet connections. It can sustain a maximum pressure of 125 PSI (8.6 bars). The check valve is certified to CSA B64.8.

Series 9D dual-check backflow preventer with intermediate atmospheric vent can be used under continuous pressure. The primary check valve uses a rubber disc seating adjacent to a mating rubber part to ensure tight closing. A second check valve employs a rubber disc-to-metal seating.
