Acorn S2340 AS Stainless Steel Combination Eye & Face Wash Emergency Shower Station - ANSI Compliant for Workplace Safety, Labs & Industrial Use

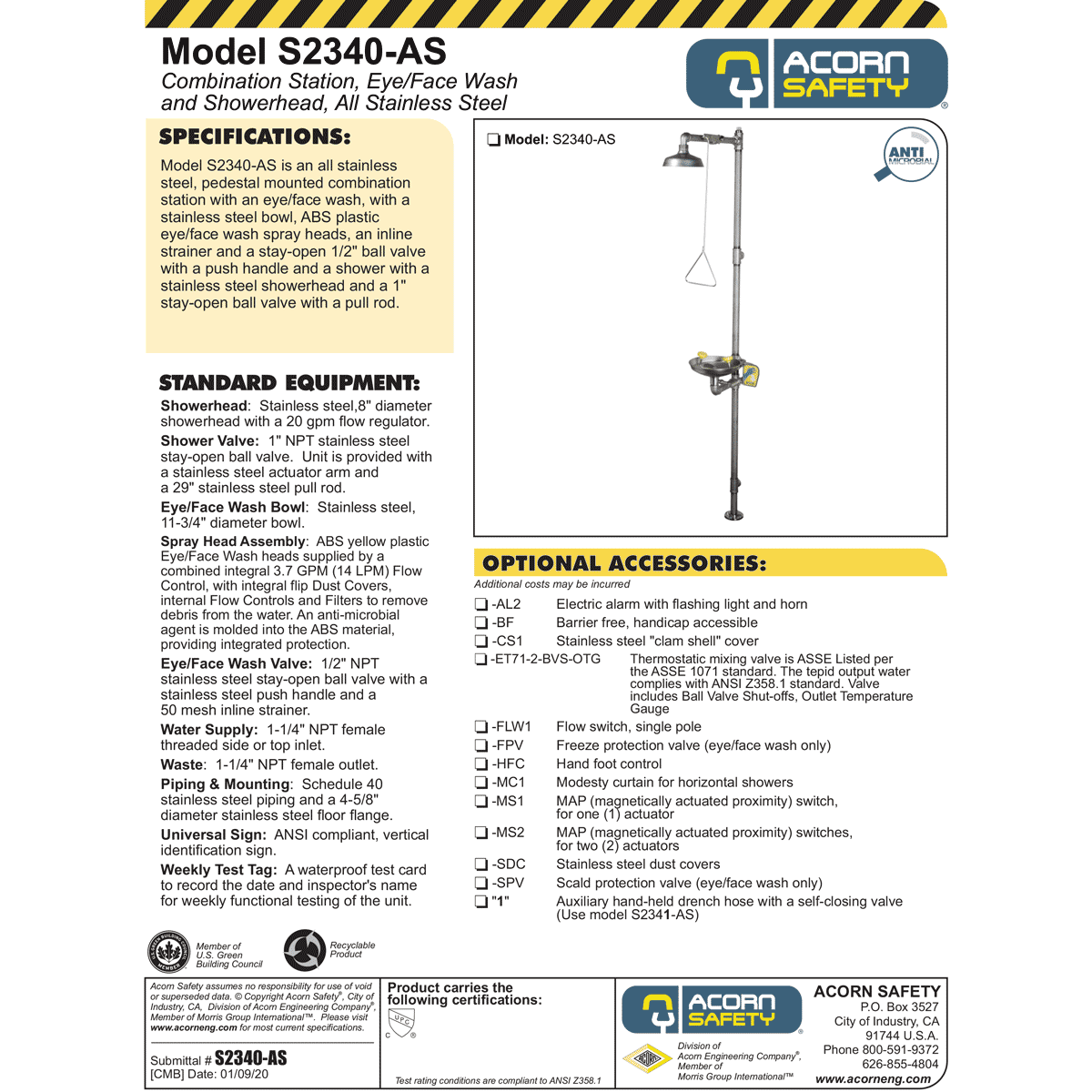

Model S2340-AS Is An All Stainless Steel, Pedestal Mounted Combination Station With An Eye/Face Wash, With A Stainless Steel Bowl, ABS Plastic Eye/Face Wash Spray Heads, An Inline Strainer And A Stay-Open 1/2" Ball Valve With A Push Handle And A Shower With A Stainless Steel Showerhead And A 1" Stay-Open Ball Valve With A Pull Rod, Meets ANSI Z358.1-2014 Standard.



From Acorn Safety:

Model S2340-AS-BF is a barrier free, all stainless steel, pedestal mounted combination station with an eye/face wash, with a stainless steel bowl, ABS plastic eye/face wash spray heads, an inline strainer and a stay-open 1/2” stainless steel ball valve with a push handle and a shower with a stainless steel showerhead and a 1" stay-open ball valve with a 48” pull rod.

Showerhead: Stainless steel, 8" diameter showerhead with a 20 gpm flow regulator.

Shower Valve: 1" NPT stainless steel stay-open ball valve. Unit is provided with a stainless steel actuator arm and a 48" stainless steel pull rod.

Eye/Face Wash Bowl: Stainless steel, 11-3/4" diameter bowl.

Spray Head Assembly: ABS yellow plastic eye/face wash heads with integral flip dust covers, internal flow controls and filters to remove debris from the water. An anti-microbial agent is molded into the ABS material, providing integrated protection.

Eye/Face Wash Valve: 1/2" NPT stainless steel stay-open ball valve with a stainless steel push handle and a 50 mesh inline strainer.

Water Supply: 1-1/4" NPT female threaded side or top inlet.

Waste: 1-1/4" NPT female outlet.

Piping & Mounting: Schedule 40 stainless steel piping and a 4-5/8" diameter stainless steel floor flange.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.
